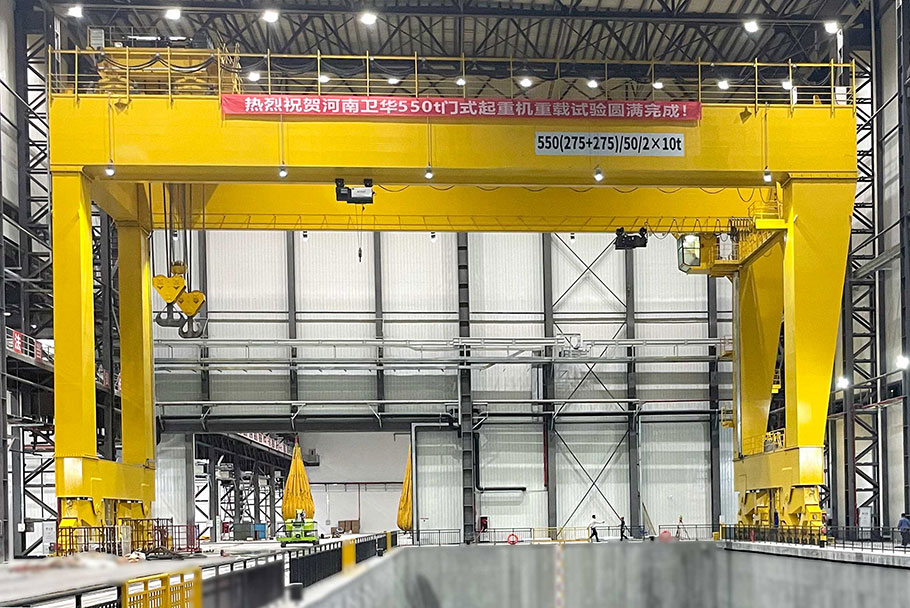

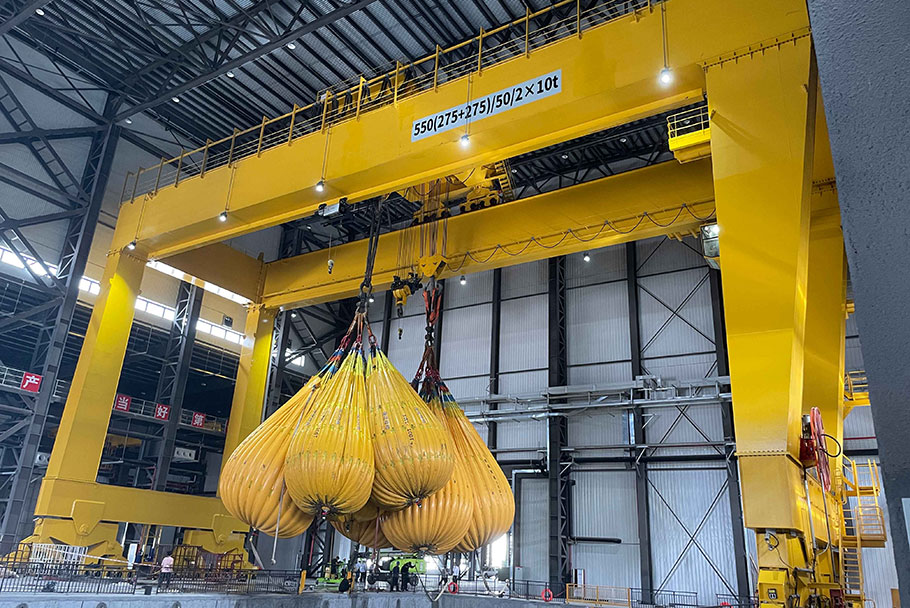

The lifting capacity of the whole machine is 550t

The trolley gauge is 10m

Once again, it refreshed the record of the largest tonnage of our company's double girder U-shaped gantry crane

Technical features:

1. The main hoisting mechanism adopts 275+275t double lifting points, which can work separately or at the same time, and is equipped with synchronous control function, which can realize the same rise and fall at the same time;

2. Each mechanism adopts frequency conversion + PLC control to achieve full load slow speed, light load fast operation, stable lifting and operation, low impact and low noise;

3. The whole machine adopts lightweight design, and the steel structure adopts finite element analysis design to meet the requirements of strength and stiffness, with compact structure, light weight, small wheel pressure and low energy consumption;

4. The trolley traveling mechanism adopts a multi-stage balance beam and a trolley combined structure, and the trolley and the balance beam are connected by Huff hinge to ensure that the force of each wheel is uniform.
